Zetron MIC100 Online Gas Monitoring System Industrial Carbon Monoxide Fixed CO Gas Monitor

Name: Zetron MIC100 Online Gas Monitoring System Industrial Carbon Monoxide Fixed CO Gas Monitor
Brand: HiYi
Price: 1 USD

China Zetron MIC100 Online Gas Monitoring System Industrial Carbon Monoxide Fixed CO Gas Monitor wholesale

Brand Name : HiYi

Model Number : MIC100

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Packaging Details : paper case

Product name : Fixed gas detector

Type : Fixed gas detector

Gas unit : PPM, mg/m3, Vol%, LEL%, PPHM, ppb, mg/l

Gas : Toxic& Harmful Gas more than 500 types

Weight : 1.6(kg)

Size : 180*140*92mm (L*H*W)

Contact Now

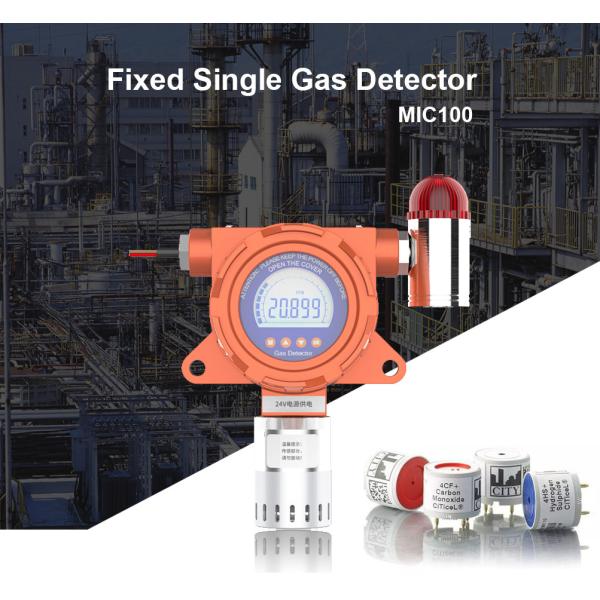

MIC100 Fixed Gas Detector

OVERVIEW

MIC100 Series gas detector can be used in 24 hours continuous online monitoring of concentrations of single gas in the filed.The types for detection are more than 500 types.

With an output, can be simply integrated into a Distributed Control System (DCS) to provide warnings and enable control of high levels in the working environment.

Simple to install service and calibrate, MIC100 Series require no hot work permit and the PID sensor is accessible and changeable in a matter of seconds.

Strong, durable and explosion-proof shell and fluorocarbon surface treatment process are suitable for the use at a variety of hazardous places and corrosive environments, it is wear-resistant.

Zetron MIC100 Online Gas Monitoring System Industrial Carbon Monoxide Fixed CO Gas Monitor

SPECIFICATION

Gas	Carbon Monoxide	Sensor	Electrochemical
Range	0-500,1000,2000ppm Can be customized	Resolution	0.1 ppm;Can be customized
Smapling Method	diffusion/pump	Control Method	Controller/lnfrared remote control
Allowable error	≤±3%FS;Can be customized	Work Method	24-hour continuously monitoring
Response time	T90≤20 seconds;Can be customized	Recovery time	≤10 seconds;Can be customized
Working Temp	'-20℃~+70℃;(Standard Values) '-40℃~+80℃;(Limit Value)	Humidity	10~95%RH
Voltage	≤2.5W(DC24V)	Power	12～30VDC
Protection level	IP65	Explosion-proof	Exd Ⅱ CT6
Alarm	Audible;Light (option)	Display	LCD/without LCD Display
Cable	PVVP3*1.0mm 2	Transmission Distance	≤1000m
Installation	Wall-mounted;Ceiling-mounted;Vertical pipe-mounted;Horizontal pipe-mounted
Output	①Three-wire system 4~20mA standard signal,and it is possible to work with controller module,PLC,DCS system.
	②Standard bus RS485(mod bus-RTU)simultaneous output,and it is possible to view the stored data on the computer via RS232 card.
	③Two set of relay switch measures ports(upper and lower limits)output:dry contact,capacity 30V 1A,125VAC0.5A.
	④Voltage Signal Output:can set 0-5v,0-10v signal output(optional).
	⑤Other Output:Frequency,Hart,Wireless,GPRS,NB etc.
Size(mm)	18014092	Weight(Kg)	1.6
Kit	Manual,qualification certificate,warranty card,outer packaging box

APPLICATION

Zetron MIC100 Online Gas Monitoring System Industrial Carbon Monoxide Fixed CO Gas Monitor
